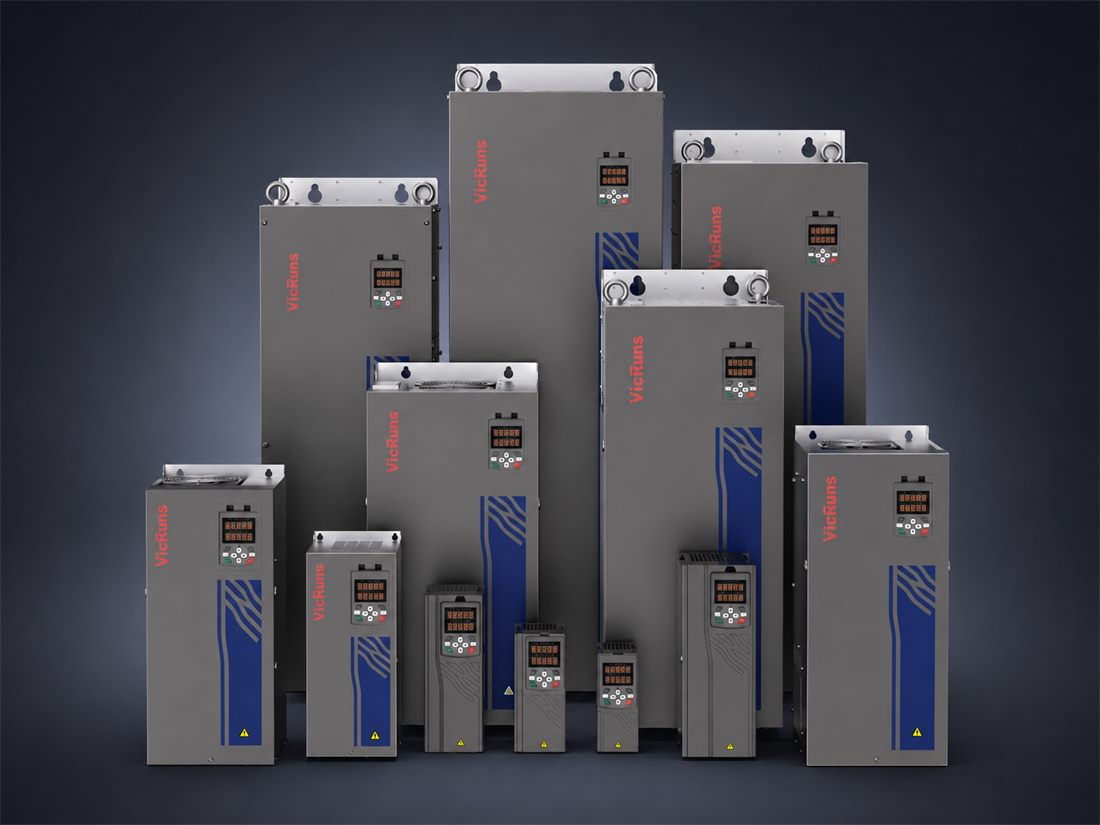

VicRuns VD60

High-performance flux vector inverter with book-style narrow-body design — built for heavy-duty, high-precision motor control from 0.75 kW up to 800 kW.

Sole Agent — VicRuns SVC & FVC Vector Control Up to 800 kW IP20

Power Range

0.75 kW – 18.5 kW

220V — Single Phase (VD60-2S)

0.75 kW – 18.5 kW

220V — Three Phase (VD60-2T)

0.75 kW – 800 kW

380V — Three Phase (VD60-4T)

Key Features

Advanced Flux Vector Control

Built-in magnetic flux and torque closed-loop control (SVC / FVC) with fully decoupled vector control for excellent dynamic response.

High Starting Torque

Up to 200% rated torque at zero speed in closed-loop vector mode, with stable operation down to 0.01Hz for smooth starts under heavy load.

Super Over-Voltage & Over-Current Suppression

Real-time suppression prevents nuisance trips during rapid acceleration, deceleration, or load changes, and enables fast shutdown without a braking resistor.

Stable High-Speed Weak Magnetic Control

New weak magnetic control algorithm supports up to 12× high-precision weak-magnetic output, with output frequency up to 600Hz under vector control.

Book-Style Narrow Body Design

Approximately 60% smaller than the previous VD550 platform, with direct top-to-bottom heat dissipation for side-by-side cabinet mounting.

Flexible Plug-In Expansion

IO, PG (ABZ/Resolver), and communication expansion cards (Profinet, CANopen, Profibus-DP) can be swapped without removing screws.

Structure & Build

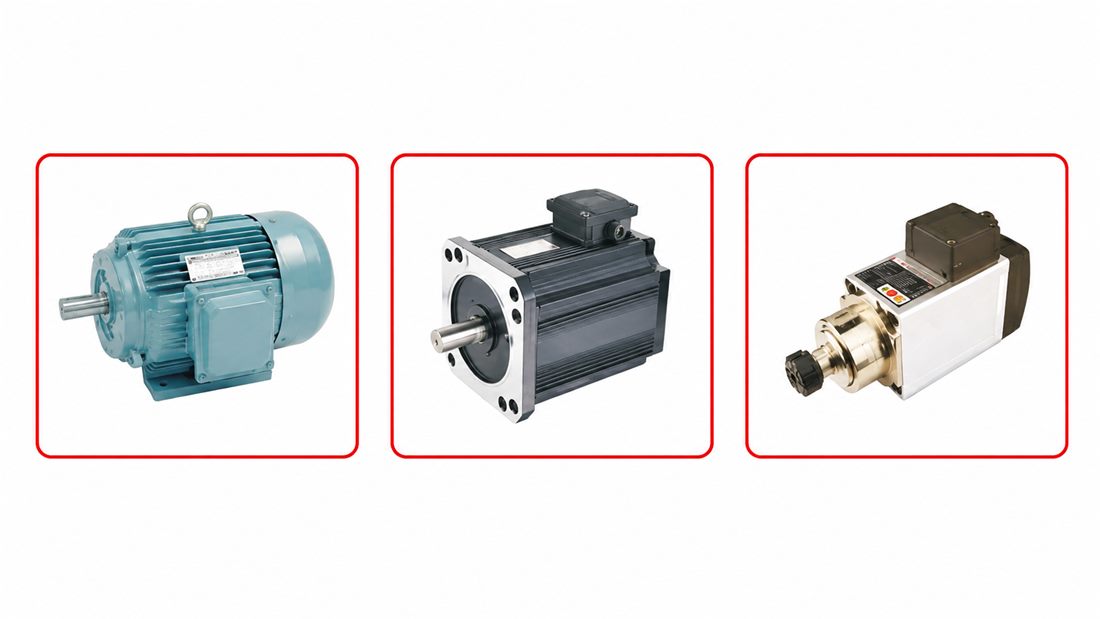

VD60 supports various motors operation — VD60 supports asynchronous motor, AC-servo motor, synchronous motor, PMSM, high speed motor and spindle motor

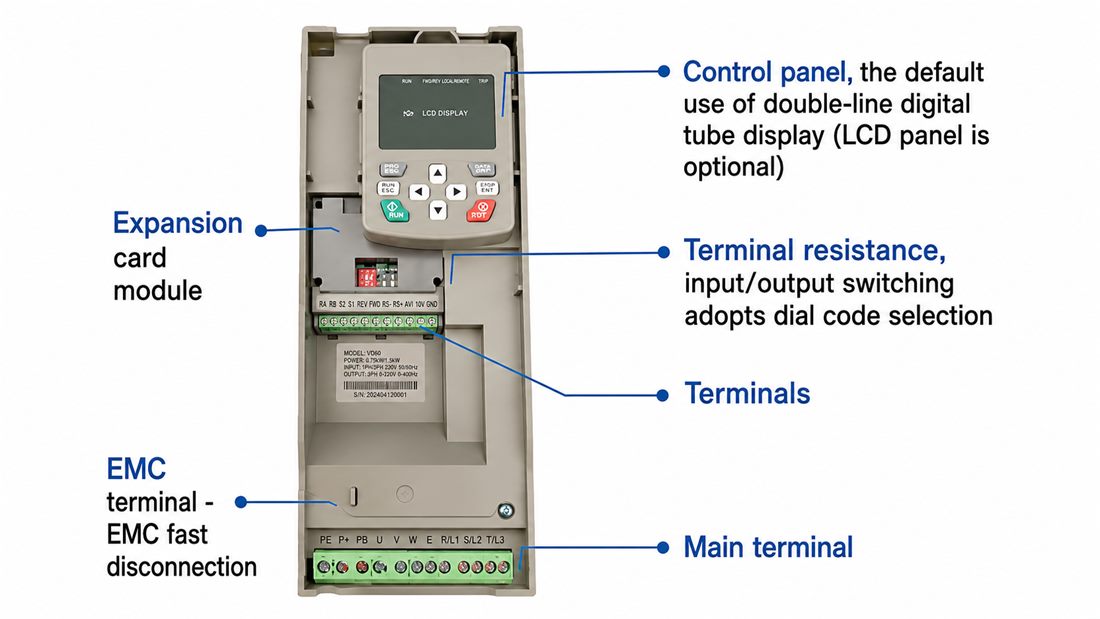

VD60 simple internal layout — Various expansion interfaces and wiring terminals are distributed in an orderly manner for convenient wiring

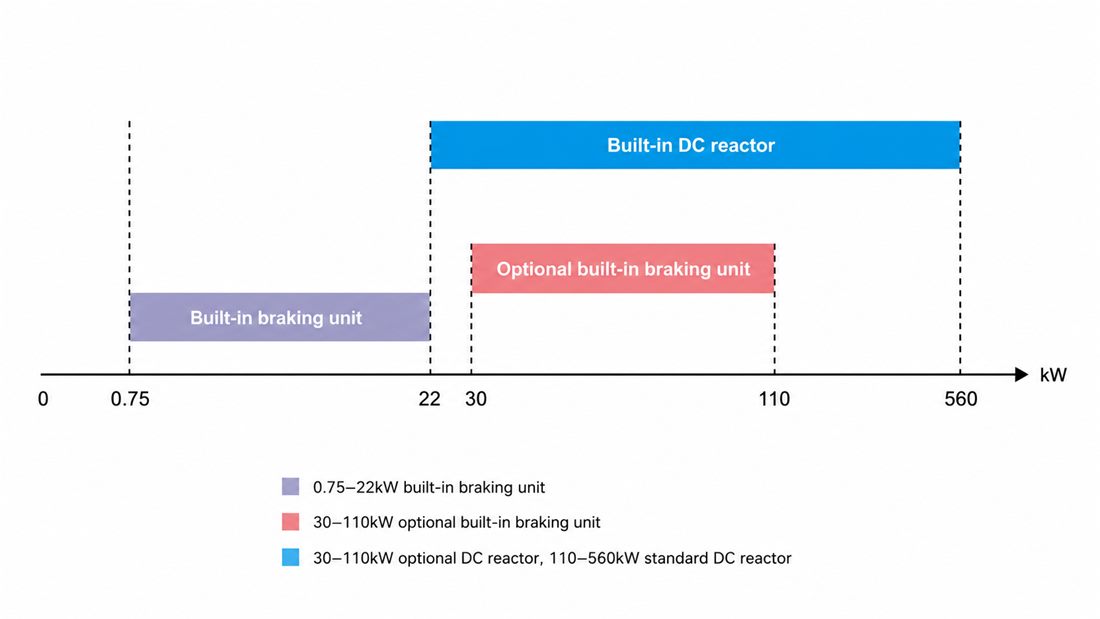

VD60 braking unit and reactor configuration — VD60 comes with built-in Braking Units and DC Reactors

Technical Specifications

Control Mode	Sensorless Vector Control (SVC), Vector Control with PG (FVC), or V/F control
Output Voltage	0 ~ rated input voltage, error < ±3%
Max. Output Frequency	600 Hz
Carrier Frequency	0.5 kHz ~ 12 kHz
Overload Capacity	G-type motor: 150% rated current for 60s · P-type motor: 120% rated current for 60s
Speed Range	1:200 (SVC) · 1:1000 (FVC)
Speed Control Accuracy	0.5% (SVC) · 0.02% (FVC)
Torque Control Accuracy	5% (SVC) · 3% (FVC)
Rated Voltage / Frequency	200V class — single/3-phase 200V~240V · 400V class — 3-phase 380V~480V, 50/60Hz
Allowable Voltage Fluctuation	−15% ~ +15% (voltage imbalance < 3%)
Allowable Frequency Fluctuation	±5%
Digital Inputs	5 × (DI1–DI5; DI5 optional high-speed pulse input up to 100 kHz)
Digital Output	1 × open-collector, optional high-speed pulse output (0.01~100 kHz)
Analog Inputs	2 × 0–10V / 0(4)–20mA, switchable
Analog Output	1 × 0–10V / 0(4)–20mA, switchable
Relay Output	1 × normally-open / normally-closed contact
Communication	RS-485, Modbus-RTU, up to 115200 bps (standard) · CANopen (optional)
Braking Unit	Built-in for 110 kW and below · optional built-in or external above 110 kW
Protection Rating	IP20
Cooling Method	Forced air cooling
Mounting	Wall-mounted & embedded (≤110 kW) · wall-mounted & cabinet (>110 kW)

Inverter Rated Parameters

380V Three-Phase — VD60-4T

Power (kW)	Output Current (A)	Input Current (A)
0.75	2.5	3.5
1.5	3.8	4.6
2.2	5.1	6.3
3.7	9	11.5
5.5	13	16.8
7.5	17	22
11	25	32.5
15	32	41.5
18.5	37	49.6
22	45	59
30	60	65
37	75	80
45	91	95
55	112	118
75	150	157
90	176	180
110	210	214
132	253	240
160	304	287
185	326	306
200	377	365
220	426	410
250	465	441
280	520	495
315	585	565
355	650	617
400	725	687
450	820	782
500	860	835
560	950	920
630	1100	1050
710	1260	1198
800	1500	1426

220V Single-Phase — VD60-2S

Power (kW)	Output Current (A)	Input Current (A)
0.75	4	8.2
1.5	7	14
2.2	9.6	23
3.7	17	35
5.5	25	50
7.5	32	61.5
11	45	90
15	60	120
18.5	75	150

220V Three-Phase — VD60-2T

Power (kW)	Output Current (A)	Input Current (A)
0.75	4	4.8
1.5	7	8.8
2.2	9.6	12
3.7	17	22
5.5	25	32.5
7.5	32	41.5
11	45	59
15	60	65
18.5	75	80

Note: All power ratings above are suitable for motors of the same rated power. VD60-4T models from 30 kW upward are also offered in matched G-type / P-type constant-torque and variable-torque pairs — contact us for the exact model code for your application.

Model Naming Convention

Example	VD60-4T-11GB/15PB-L-XX
① Inverter Series	VD60
② Voltage Grade	2S — single phase 220V · 2T — three phase 220V · 4T — three phase 380V
③ Adaptable Motor Power	G type — constant torque (heavy duty) · P type — variable torque (light duty / fan & pump)
④ Braking Unit	B — built-in braking unit · blank — none
⑤ DC Reactor	Indicates whether a DC reactor is included
⑥ User-Defined Code	Reserved for custom/OEM configuration codes

Enclosure & Mounting Options

Enclosure Type	Power Range	Mounting
Plastic Shell	0.75 kW – 18.5 kW	Wall-mounted / embedded
Iron Shell	15 kW – 560 kW	Wall-mounted / embedded (≤110 kW) · wall-mounted (132–160 kW)
Cabinet-Ready	185 kW – 710 kW	Wall-mounted & cabinet installation, optional chassis base
Floor Cabinet	630 kW – 800 kW	Cabinet installation

Full mounting hole and dimension drawings for every frame size are provided in the VD60 Series User Manual (see Downloads below).

Expansion Cards

IO1 / IO2 / IO3 Expansion CardDI, DO, AI, AO, relay

ABZ PG Expansion Card

Resolver Expansion Card

CANopen Communication Card

Profinet Expansion Card

Profibus-DP Expansion Card

Typical Applications

Petrochemical

Construction Machinery

Port Equipment

Mining Equipment

Metallurgical Equipment

Machine Tool Equipment

Smart Manufacturing

Textile & Tension Equipment

Downloads

▪VD60 Product Catalogue (PDF) ▪VD60 Series User Manual (PDF)
