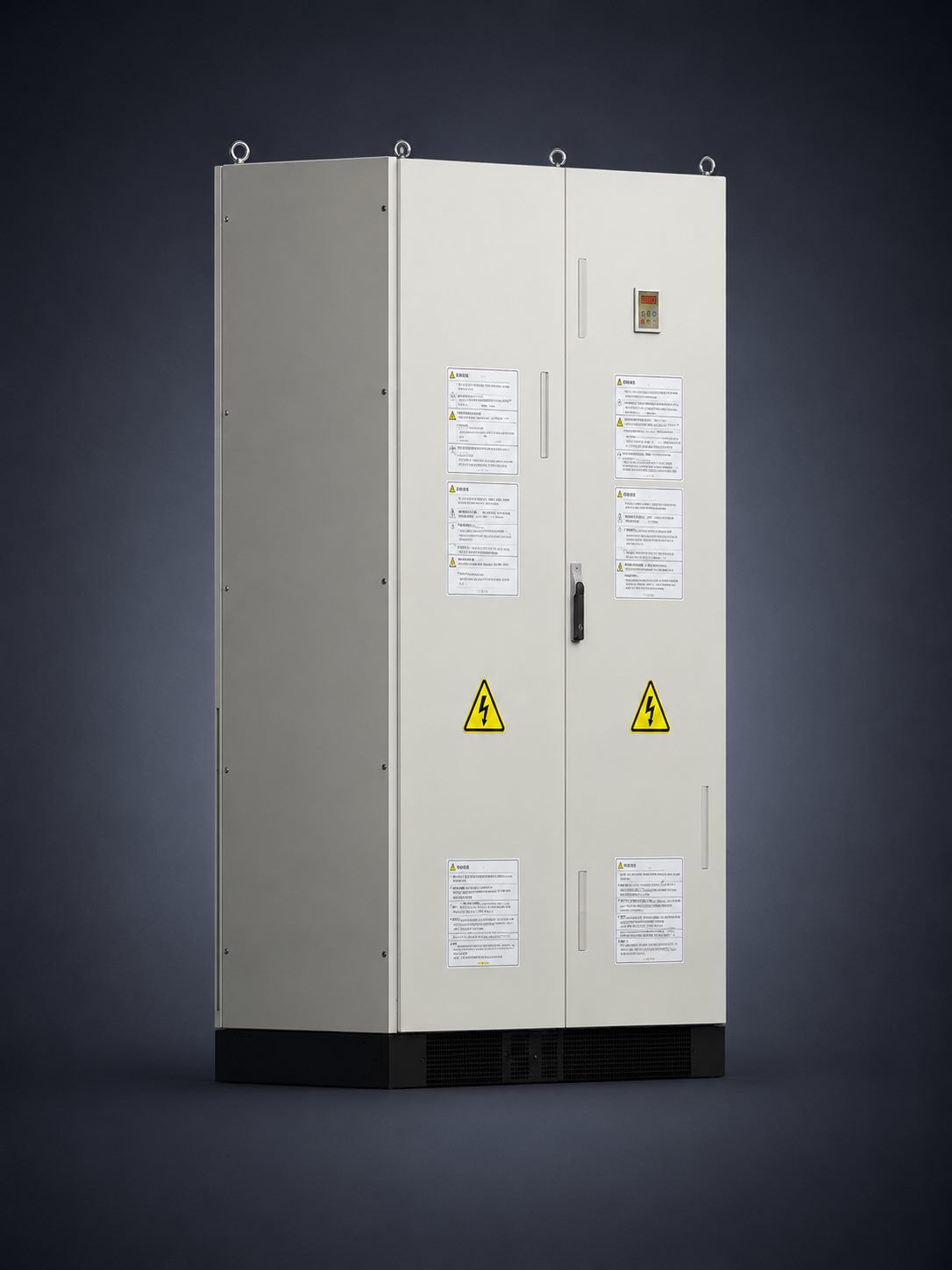

VicRuns VD30A
Cabinet-built, low- and medium-voltage frequency converter for direct drive of large industrial motors — 380 V to 3.3 kV standard voltage classes, with fully customized cabinet builds available to match your installation and motor requirements.
Every VD30A cabinet is engineered to order. Need a voltage, power, or footprint outside the standard classes above? Contact us — customization is fully supported.
A three-phase uncontrolled rectifier bridge converts incoming AC to a regulated DC bus, with a DC choke to improve input power factor and suppress bus voltage ripple.
The machine-side IGBT inverter converts the DC bus into variable voltage, variable frequency AC, with a DC soft-start circuit to limit inrush current at power-up.
Power and rectifier modules are modular, bolt-in assemblies positioned for easy access, so installation and field maintenance are quick and straightforward.
An optional du/dt inductor reduces output voltage rate-of-rise to protect motor winding insulation, while an optional braking unit dissipates regenerative energy during deceleration.
Supports V/F control, sensorless vector control (SVC), and closed-loop vector control with encoder feedback (FVC) for precise speed and torque regulation.
Delivers 0–300 Hz output, suiting both standard-speed pumps and fans and high-speed direct-drive applications.
| Control Modes | V/F control · Sensorless vector control (SVC) · Vector control with PG (FVC) |
|---|---|
| Applicable Motor | Three-phase standard & variable-frequency asynchronous motors |
| Rated Voltage Classes | 380 V · 690 V · 3.3 kV (custom classes available) |
| Output Frequency Range | 0 ~ 300 Hz |
| Overload Capacity | 130% for 60 s · 150% for 3 s (40°C, ≤1000 m altitude, 300 s cycle) |
| System Efficiency | > 98% |
| Input Power Factor | 0.93 ~ 0.96 at rated conditions |
| Input Voltage Tolerance | −20% / +10% of rated input |
| Rated Input Frequency | 47.5 Hz ~ 63 Hz |
| Speed Range / Accuracy | 1:1000 with ±0.1% steady-speed accuracy (PG vector control) |
| Starting Torque | 150% rated torque at 0.1 Hz (PG vector control) |
| Carrier (Switching) Frequency | 2 kHz |
| Frequency Resolution | 0.01 Hz (digital) · 0.025% of max frequency (analog) |
| Acceleration / Deceleration Time | 0 ~ 65000 s, individually adjustable |
| Protection Rating | Cabinet, forced air-cooled |
| Cooling Method | Forced air cooling, redundant centrifugal fans |
| MTBF | 40,000 hours at 25°C, ≤1000 m altitude, rated operation |
| Acoustic Noise | ≤ 80 dB (per DL/T994-2006) |
| Example | VD30A−033 T / 250G |
|---|---|
| Series | VD30A — cabinet-built frequency converter series |
| Voltage Class | 004 — 380 V · 007 — 690 V · 033 — 3.3 kV |
| Power Supply | T — three-phase AC |
| Adaptable Motor Power | e.g. 250G — 250 kW rating |
Custom voltage classes, capacities, and cabinet configurations outside this naming scheme can be engineered on request — contact us with your requirements.
| Adaptable Motor | Working Voltage | Working Current | Braking Resistor Power |
|---|---|---|---|
| 1000 kW → 900 kW | 1100 V | 909 A | 50 kW |
| 1200 kW → 1100 kW | 1100 V | 1090 A | 60 kW |
| 1400 kW → 1200 kW | 1100 V | 1386 A | 70 kW |
Braking resistor selection depends on braking duty cycle, deceleration time, and system inertia — final values are engineered per project.
| Operating Temperature | −25°C ~ +50°C (derate 2% per °C above 40°C) |
|---|---|
| Storage Temperature | −40°C ~ +70°C, rate of change <1°C/min |
| Relative Humidity | 10% ~ 95%, no condensation |
| Altitude | No derating ≤1000 m · derate 1% output / 100 m above 1000 m |
| Installation | Vertical mounting on a flame-retardant base, level to ≤10 mm / 3 m |
| Clearance Required | ≥500 mm left/right · ≥800 mm front/rear for door access, maintenance & heat exchange |
| Please Provide When Ordering | Voltage class & rated capacity · driven motor parameters · load type & characteristics · cabinet layout / clearance requirements · any project-specific customization |
